SWARM Sound

The new standard in sound level monitoring

Class 1 performance

Omnidots' sound level meter is highly accurate. It conforms to class 1 specifications set by the IEC61672, making it ideal for environmental monitoring purposes.

Easy unmanned monitoring

You only need to be present at the construction site twice - once to install the device and once to remove it after project completion. Everything else can be done online. With real-time data access, you have insight anywhere and anytime.

One solution for your monitoring needs


The SWARM Sound level monitor and the SWARM Vibration monitor are fully compatible with Honeycomb. Get unique insights by combining our monitoring devices in the Honeycomb platform.


Industry standards
IEC 61672 and ANSI S1.43 performance

Request a quote Book a discovery call

Try the SWARM Sound settings on Honeycomb for free!

SWARM Sound level monitor_bkgr

Sound Level Monitoring

Easy-to-use
Sound Level Monitor

"The new standard in sound level monitoring"

SWARM Sound is revolutionizing noise monitoring, providing unparalleled accuracy and ease of use. Designed with precision and powered by innovation, SWARM Sound ensures optimal noise management solutions and sets a new standard for the construction industry.

Our objective was to streamline sound level monitoring like never before. By listening attentively to feedback from our customers, we created the SWARM Sound Level Meter. It offers with Class 1 performance with all the benefits of MEMS-based technology (like our vibration monitor). This allows for seamless integration with our innovative Honeycomb platform.

Try out the SWARM Sound settings on Honeycomb for free!

Customers we're proud to work with

Companies that are satisfied with Omnidots

SWARM Sound + Honeycomb web platform

The ultimate noise monitoring solution

SWARM Sound utilizes MEMS technology and the outstanding Honeycomb SaaS solution for monitoring and reporting, providing the first sound level meter with Class 1 performance that is simultaneously easy to use, durable, and cost-effective. The SWARM Sound hardware provides a plug-and-play option for remote noise monitoring with automated alerts and long battery life. The Honeycomb software makes configuration easy enough for novices while still having the tools advanced users demand.

Don’t miss out on the following highlights:

  • Flexible connectivity: integrated 4G/LTE and Wifi, PoE.
  • Flexible power: Battery, mains/AC power, Solar, or PoE.
  • Compact IP65 weatherproof rated for easy installation.
  • Remote configuration, alerting, and review.
  • GPS timing: This allows you to pinpoint the exact time of an event and lets you easily compare the data with other sensors.
  • Measuring: Leq, Lmax, Lpeak and Lden, L10, L50 and L90.
  • Flag and comment on events or event blocks for easy record-keeping and report creation.
  • Customizable alerts for Leq and Lmax.
  • Lden: time and day variable records to meet the most complex specifications (coming soon)
  • Sound clips (coming soon)
Request a quote Book a discovery call

Honeycomb Sound_3

Any questions? Reach out to sales expert Jurjen!

When it comes to understanding our solution and how it perfectly suits your needs, Jurjen is the person you should reach out to.

+ 31 6 19 96 54 65
Call Jurjen about the SWARM vibration monitor

What you can expect from the SWARM Sound

SWARM Sound in a nutshell

One place for your monitoring projects

The SWARM Sound, SWARM Vibration, and SWARM Air all work with the Honeycomb platform. Keep track of all your monitoring projects in one place.
One place for your monitoring projects

Class 1 performance

The Class 1 sound level meter is commonly referred to as a 'precision' grade meter. It conforms to class 1 specifications set by the IEC61672. Particularly suitable for environmental monitoring, among various other applications.

Class 1 performance

MEMS technology

MEMS sensors improve your monitoring experience by saving time, money, and effort.

MEMS technology

Real-time visual data

Get instant insights from your project. Prevent nuisance by stepping in when needed.

Real-time visual data

Easy mounting

Attach the SWARM Sound using a pole, tripod, or bracket mount.

Easy mounting

Long battery life

SWARM Sound is designed to be highly energy efficient, allowing you to utilize the battery for up to 4 weeks under normal usage conditions.
Long battery life
Request a quote Book a discovery call

Try out the SWARM Sound settings on Honeycomb for free!

Relevant customer stories

What others say about Omnidots

All customer stories

5 steps to start
measuring sound levels

Step 1

Mount the SWARM Sound

Simply mount the SWARM on a pole using the provided band clamp or attach it on a tripod using the 3/8” UNC thread.

Sound_QSG_1_Mount
Step 1
Step 2

Sound_QSG_3_Power_H_ SWARM

Power up

Connect the SWARM Sound to a SWARM Battery or use the provided power adapter.

Step 2
Step 3

Wait until connected

The LED lights will begin the startup sequence; after this, the SWARM Sound will try to connect via the chosen GSM, WiFi, or PoE.

Sound_QSG_4_Wait until connected-1
Step 3
Step 4

Setup online

Log in to your Honeycomb account and create a measuring point for your SWARM Sound.

Sound_QSG_5_Create account
Step 4
Step 5

Go!

You can now view measurement data and generate customized reports, 24/7, anywhere on any device!

Sound_QSG_6_Create MP_monitor
Step 5
Request a quote Book a discovery call

More details about the SWARM Sound

SWARM Sound render front_small

Article numbers: "SWARM Sound", "SWARM Sound 1st-serie" & "Battery Cable Sound"

Complies with industry standards: IEC 61672, ANSI S1.43 class 1 tolerances met.

  • The SWARM Sound continuously sends the measurement data automatically to Honeycomb via 4G/LTE, WiFi, or PoE using an adapter.
  • Mounting is very quick and easy.
  • The SWARM Sound is compact, lightweight, and IP65-rated.

SWARM Sound technical specifications

Download the specification sheet for more technical information about SWARM Sound.

Download technical specifications

SWARM Sound Quick Start Guide

You can find the SWARM Sound Quick Start Guide over here

SWARM Sound infographic

Save the infographic as a PDF for later or print it out on an A4 sheet.

Download infographic

Hassle-free monitoring

Introducing SWARM Sound, along with our SWARM Vibration and SWARM Air, we now offer a complete range of monitoring devices, providing the ultimate solution for monitoring. Now you can have everything in one convenient place: the powerful combination of 3 monitoring devices, together with the connecting Honeycomb platform.

Monitor construction and infrastructure risk factors the simple way

Save time and effort by using a fully integrated monitoring solution

Enjoy the simplicity and convenience of using our innovative solution

42

Active in 42 countries

Companies all over the world are working with our monitoring solution.

32k+

Measurements

Since 2018, our clients have conducted more than 32k measurements with our solution.

95%

Happy customers

95% happy customers in 2023.

Frequently Asked Questions
about the SWARM Sound

Reading the SWARM Sound status lights
The SWARM Sound monitor status is displayed through a sequence of five different LED lights and colors.

Like our SWARM Vibration monitor, the SWARM Sound has LED lights to indicate the device's status. The difference is the number. The SWARM Sound has five status LED lights to create a light sequence to read the status.

Check out our Support Center for all the sequence animations.

Example of the startup sequence:



Will the protection cap come off the microphone with a gust of wind?
The omnidirectional microphone is protected with a foam cap, making it weatherproof, including wind.

No, the foam cap will not be blown away by the wind. However, we do not recommend testing this during a hurricane or tornado.

Shouldn't the microphone point upwards?
No. Ensure the microphone points down or horizontally for correctly using the SWARM Sound.

Don't worry, you will not miss a sound. We thought it through. Researched the effects extensively and tested the SWARM Sound meticulously.
For Class 1 performance noise monitoring, there is no difference if the microphone is on top or the bottom of the SWARM Sound level monitor.

The SWARM Sound microphone direction is sideways and calibrated forward. When mounted on a pole, the microphone is slightly angled and omnidirectional. Pointing the microphone upward adds no value to the measurement and makes it easier for birds to sit on it, and the microphone is more affected by rain. Therefore, we recommend pointing it downward.

That is why it doesn't matter that the SWARM Sound microphone is not pointed upward.

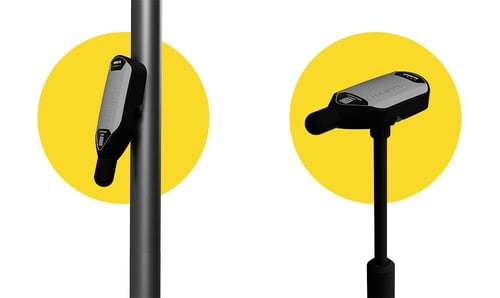

SWARM Sound mounted on a pole and tripod
